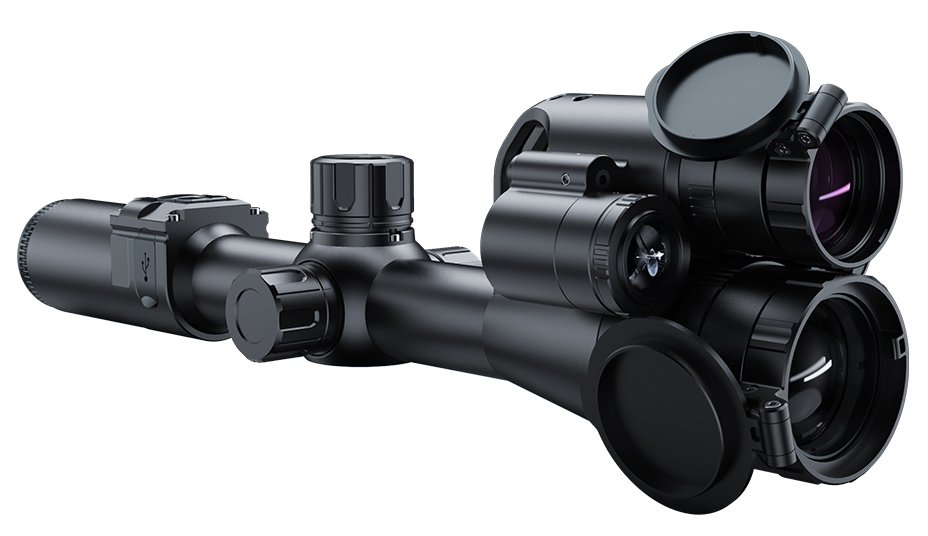

PARD TD62 MULTI SPECTRAL 45MM 640X512 W/LRF

Model TD62-70 – Classification Multi-spectral Thermal/Night Vision Scope – Thermal Sensor – Type Uncooled Vox IR Sensor – Resolution(pixel) 640*512 – Pixel Size(µm) 12*12 – NETD ?25mK?0.025?? – Frame Rate(Hz) 50 – Human Detection Distance(m) 1800 – Vehicle Detection Distance(m) 3300 – Image Engine PARD IREA – Objective lens(mm) 45 – Optical Magnification(x) 2 – Digital Zoom(x) 2 – Continuous Digital Zoom(x) 2-4 – Field of View (HxV) Horizontal 5.6° – Vertical 5.6° – Diagonal 7.9° – Focus range 3m-infinity – Visible Light Sensor – Type CMOS Sensor – Resolution(pixel) 2560*1440 – Pixel Size(?m) 2.9 – Sensitivity(lux) 0.001 – Frame Rate(Hz) 30 – Image Engine PARD VLEA – Objective Lens(mm) 70 – Optical Magnification(x) 3.2 – Digital Zoom(x) 2 – Continuous Digital Zoom(x) 3.2-6.4 – Field of View (HxV) Horizontal 3.4° – Vertical 3.4° – Diagonal 4.8° – Focus range 3m-infinity – Display – Type IPS – Resolution(pixel) 800*800 – Reticle Style 6 – Reticle Color 4(Red/White/Yellow/Green) – Scene Mode City/Rain/Forest – Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY – Eye Relief(mm) 100 – Diopter Adjustment(D) -5~+3 – Photo / Video – Photo Resolution(pixel) 2592*1944 – Photo Format .JPG – Video Resolution(pixel) Thermal: 1024*768/Night Vision: 1440*1080 – Video Format .mp4 – Storage(GB) Micro SD card (Max. 128) – Main Function – LRF Detection Range(yd/m) 1200/1000 – PIP Yes – Gyroscope Yes – Loop Recording Yes – Red Dot Yes – E-compass Yes – Shutter Mechanical shutter – Microphone Yes – Firmware Upgrade Yes – IR Illuminator – IR Type VCSEL – IR power(W) 5 – IR Illuminating Level 3 Levels – IR Distance(m) 350 – IR Wavelength(nm) 850/940 – Interfaces – USB Type-C Yes – HDMI Output Yes – Connections – WiFi Yes – Supported Apps PardVision – Power Supply – Battery type Li-ion 21700*1 – Output Voltage(V) 3.7 – Operating Time(h) ?6 – External Power Supply Type Type-C – Environmental characteristic – Degree of Protection IP67 – Operating Temp(°C/°F) -20 ~ +50 / -4 ~ +122 – Recoil Resistance(J) 6000 – Material – Housing Aluminum Alloy – Objective lens All-glass multi-coated lens – Measurement – Product Dimension(L * W * H mm) 350*91*95 – N.W/pcs(without battery g) 800
